在漏洞利用门槛如此低廉的今天，作为企业安全的建设者（搬砖人），除了考虑部署容器层面运行时检测平台，在k8s api-server层面，启用日志审计功能，也是一个成本低廉又高效发现入侵攻击的途径。
通过对api-server的日志进行审计分析，对于攻击者的信息收集行为，部署k8s cronjob后门、利用rbac做权限提升等持久化攻击行为都能及时的发现并输出告警。
- 发生了什么？ - 什么时候发生的？ - 谁触发的？ - 为什么发生? - 在哪观察到的？ - 它从哪触发的？ - 它将产生什么后果？
审计日志示例（图片来自参考[5]
1、api-server命令行启动时，添加如下参数
--audit-policy-file=/etc/kubernetes/audit/audit-default-policy.yaml # 审计策略文件 --audit-log-path=/data/log/audit/audit.log # kube-apiserver 输出的审计日志文件，此处以日志文件落地的方式做日志收集 --audit-log-maxbackup=10 # kube-apiserver 审计日志文件的最大备份数量 --audit-log-format=json #日志保存格式 --audit-log-maxage=10 #日志最大保留时间 --audit-log-maxsize=500
2、kubeadm启动时
修改api-server配置文件/etc/kubernetes/manifests/kube-apiserver.yaml，增加如下内容
--audit-policy-file=/etc/kubernetes/audit/audit-default-policy.yaml --audit-log-path=/data/log/audit/audit.log --audit-log-maxbackup=10 --audit-log-format=json --audit-log-maxage=10 --audit-log-maxsize=500
2. 攻击行为检测
作为甲方安全的守护者，从安全建设的角度，如何有效及时的发现攻击者的入侵行为，是一个无法避开的问题。本文通过观察cdk的攻击行为，从k8s日志审计的角度罗列一些入侵检测的常见规则。
目前，针对于日志的审计分析，我们落地方案的整个流程为：
{
"kind": "Event",
"apiVersion": "audit.k8s.io/v1",
"level": "Metadata",
"stage": "ResponseComplete",
"requestURI": "/",
"verb": "get",
"user": {
"username": "system:anonymous",
"groups": [
"system:unauthenticated"
]
},
"sourceIPs": [
"172.18.0.2"
],
"userAgent": "Go-http-client/1.1",
"responseStatus": {
"metadata": {},
"status": "Failure",
"reason": "Forbidden",
"code": 403
},
"requestReceivedTimestamp": "2023-02-02T08:29:12.189459Z",
"stageTimestamp": "2023-02-02T08:29:12.189553Z",
"annotations": {
"authorization.k8s.io/decision": "forbid",
"authorization.k8s.io/reason": ""
}
}
2.2.2 列举namespace
{
"kind": "Event",
"apiVersion": "audit.k8s.io/v1",
"level": "Metadata",
"auditID": "41770e7a-1827-4a14-860f-a812d3db1647",
"stage": "ResponseComplete",
"requestURI": "/api/v1/namespaces",
"verb": "list",
"user": {
"username": "system:serviceaccount:test:default",
"uid": "63b8dd88-88dd-4426-bdd1-7966906dc0d5",
"groups": [
"system:serviceaccounts",
"system:serviceaccounts:test",
"system:authenticated"
]
},
"sourceIPs": [
"172.18.0.2"
],
"userAgent": "Go-http-client/1.1",
"objectRef": {
"resource": "namespaces",
"apiVersion": "v1"
},
"responseStatus": {
"metadata": {},
"status": "Failure",
"reason": "Forbidden",
"code": 403
},
"requestReceivedTimestamp": "2023-02-02T08:29:12.205422Z",
"stageTimestamp": "2023-02-02T08:29:12.205485Z",
"annotations": {
"authorization.k8s.io/decision": "forbid",
"authorization.k8s.io/reason": ""
}
}
2.2.3 探测可访问的api
1、userAgent: Go-http-client/1.1 # CDK特定的userAgent，此时，该字段为主要特征 2、responseStatus.code: 403 #默认serviceaccount无权限时 api-server返回的状态码 3、requestURI: / # 访问根目录
2.3 漏洞利用
当一个拥有privilege、sys_admin、network、ipc等特殊权限的pod创建时，它的日志记录是这样的。
{
"kind": "Event",
"apiVersion": "audit.k8s.io/v1",
"level": "RequestResponse",
"stage": "ResponseComplete",
"requestURI": "/api/v1/namespaces/testpods/pods",
"verb": "create",
"user": {
"username": "kubernetes-admin",
"groups": [
"system:masters",
"system:authenticated"
]
},
"sourceIPs": [
"172.18.0.1"
],
"userAgent": "kubectl1.16.15/v1.16.15 (darwin/amd64) kubernetes/2adc8d7",
"objectRef": {
"resource": "pods",
"namespace": "testpods",
"name": "testpod",
"apiVersion": "v1"
},
"responseStatus": {
"metadata": {},
"code": 201
},
"responseObject": {
"kind": "Pod",
"apiVersion": "v1",
"metadata": {
"name": "testpod",
"namespace": "testpods",
"selfLink": "/api/v1/namespaces/testpods/pods/testpod",
"uid": "e717d204-7e6d-4608-998b-648a8667e8e1",
"resourceVersion": "13517",
"creationTimestamp": "2023-02-02T09:51:10Z",
"labels": {
"creator": "zhiye",
"team": "teamf"
}
},
"spec": {
"volumes": [
{
"name": "rootfs",
"hostPath": {
"path": "/",
"type": ""
}
}
],
"containers": [
{
"name": "trpe",
"image": "alpine",
"command": [
"/bin/sh",
"-c",
"tail -f /dev/null"
],
"resources": {},
"volumeMounts": [
{
"name": "default-token-mm6s8",
"readOnly": true,
"mountPath": "/var/run/secrets/kubernetes.io/serviceaccount"
}
],
"terminationMessagePath": "/dev/termination-log",
"terminationMessagePolicy": "File",
"imagePullPolicy": "Always",
"securityContext": {
"capabilities": {
"add": [
"SYS_ADMIN"
]
},
"privileged": true
}
}
],
"restartPolicy": "Always",
"terminationGracePeriodSeconds": 30,
"dnsPolicy": "ClusterFirst",
"serviceAccountName": "default",
"serviceAccount": "default",
"hostNetwork": true,
"hostPID": true,
"hostIPC": true,
"securityContext": {},
"schedulerName": "default-scheduler",
"tolerations": [
{
"key": "node.kubernetes.io/not-ready",
"operator": "Exists",
"effect": "NoExecute",
"tolerationSeconds": 300
},
{
"key": "node.kubernetes.io/unreachable",
"operator": "Exists",
"effect": "NoExecute",
"tolerationSeconds": 300
}
],
"priority": 0,
"enableServiceLinks": true
},
"status": {
"phase": "Pending",
"qosClass": "BestEffort"
}
},
"requestReceivedTimestamp": "2023-02-02T09:51:10.632436Z",
"stageTimestamp": "2023-02-02T09:51:10.660958Z",
"annotations": {
"authorization.k8s.io/decision": "allow",
"authorization.k8s.io/reason": ""
}
}
从日志上可以看出，针对于错误配置导致的逃逸，我们可以关注以下几个日志字段,制定告警规则。
responseObject.spec.volumes # 检测敏感卷，是否挂载docker.sock等 responseObject.spec.containers.volumeMounts # 检测敏感挂载，是否挂载docker.sock等 responseObject.spec.containers.securityContext.capabilities.add # 是否使用SYS_ADMIN权限，（字段嵌套这么多层，真的得吐槽 responseObject.spec.containers.securityContext.privileged # 检测是否为特权pod容器 responseObject.spec.hostNetwork # 是否使用宿主机网络 responseObject.spec.hostPID # 是否使用宿主机hostPID responseObject.spec.hostIPC # 是否共享宿主机内存 responseObject.spec.serviceAccount # 是否使用特殊的serviceaccount 默认为default
下边列举些主要特征
requestURI: /api/v1/secrets， requestURI: /api/v1/configmaps requestURI: /apis/policy/v1beta1/podsecuritypolicies userAgent: Go-http-client/1.1 user.username: "system:anonymous" responseStatus.code: 403 "verb": "list"
2.3.4 权限提升
日志如下
{
"kind": "Event",
"apiVersion": "audit.k8s.io/v1",
"level": "RequestResponse",
"auditID": "bfc643d6-8337-434e-9dec-ba41dd36bfa7",
"stage": "ResponseComplete",
"requestURI": "/api/v1/namespaces/kube-system/pods",
"verb": "create",
"user": {
"username": "system:serviceaccount:test:default",
"uid": "63b8dd88-88dd-4426-bdd1-7966906dc0d5",
"groups": [
"system:serviceaccounts",
"system:serviceaccounts:test",
"system:authenticated"
]
},
"sourceIPs": [
"172.18.0.3"
],
"userAgent": "Go-http-client/1.1",
"objectRef": {
"resource": "pods",
"namespace": "kube-system",
"apiVersion": "v1"
},
"responseStatus": {
"metadata": {},
"status": "Failure",
"reason": "Forbidden",
"code": 403
},
"responseObject": {
"kind": "Status",
"apiVersion": "v1",
"metadata": {},
"status": "Failure",
"message": "pods is forbidden: User \"system:serviceaccount:test:default\" cannot create resource \"pods\" in API group \"\" in the namespace \"kube-system\"",
"reason": "Forbidden",
"details": {
"kind": "pods"
},
"code": 403
},
"requestReceivedTimestamp": "2023-02-03T09:56:24.061825Z",
"stageTimestamp": "2023-02-03T09:56:24.061888Z",
"annotations": {
"authorization.k8s.io/decision": "forbid",
"authorization.k8s.io/reason": ""
}
}
由上可发现如下特征：
Pod内serviceaccount无权限的情况 requestURI: /api/v1/namespaces/kube-system/pods userAgent: Go-http-client/1.1 responseStatus.code: 403 Pod内serviceaccount有权限的情况 requestURI: /api/v1/namespaces/kube-system/pods responseObject.metadata.selfLink: /api/v1/namespaces/kube-system/pods/cdk-rbac-bypass-create-pod responseObject.metadata.spec.containers.args: *cat /run/secrets/kubernetes.io/serviceaccount/token* verb: create
2.3.5 持久化
源码是这样定义的（参考[6]）：
objectRef.name: cdk-backdoor-daemonset objectRef.namespace: kube-system responseObject.metadata.selfLink: /apis/apps/v1/namespaces/kube-system/daemonsets/cdk-backdoor-daemonset responseObject.spec.template.spec.volumes.hostPath.path: / responseObject.spec.template.spec.containers.name: cdk-backdoor-pod responseObject.spec.template.spec.containers.securityContext[capabilities:ptivileged]:如图上所示 responseObject.spec.template.spec.[hostNetwork|hostPID]: true
部署K8S CronJob

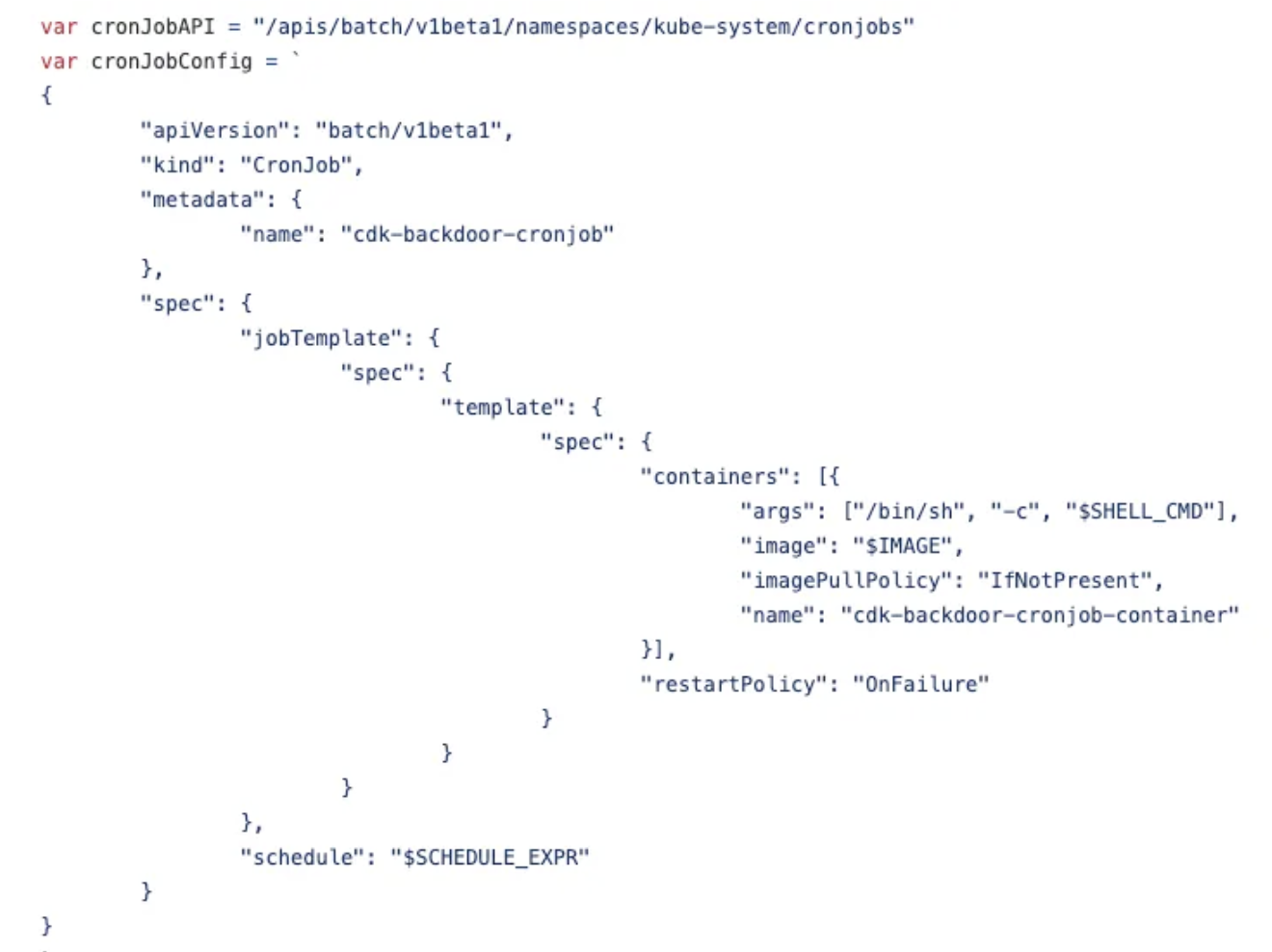

CDK源代码是这样定义的（参考[7]）：
requestURI: /apis/batch/v1beta1/namespaces/kube-system/cronjobs verb: create objectRef.name: cdk-backdoor-cronjob responseObject.matadata.name: cdk-backdoor-cronjob responseObject.matadata.selfLink: /apis/batch/v1beta1/namespaces/kube-system/cronjobs/cdk-backdoor-cronjob responseObject.spec.jobTemplate.spec.template.spec.containers.name: cdk-backdoor-cronjob-container
部署影子k8s api-server
在pod权限足够的情况下，通过创建shadow api-server做权限维持，详情见参考[4]
在非二开的情况下，通过k8s日志升级可检测以下几个字段
objectRef.name: *-shadow-* responseObject.metadata.labels.component: kube-apiservershadow responseObject.spec.containers.command: "--secure-port=9444"
2.3.6 总结
执行./cdk kcurl default get ‘https://10.96.0.1:443/api/v1/nodes’ ，日志内容如下：
{
"kind": "Event",
"apiVersion": "audit.k8s.io/v1",
"level": "Metadata",
"auditID": "418cafa5-2c1e-4fbf-b086-3d68e321d2bb",
"stage": "ResponseComplete",
"requestURI": "/api/v1/nodes",
"verb": "list",
"user": {
"username": "system:serviceaccount:test:default",
"uid": "63b8dd88-88dd-4426-bdd1-7966906dc0d5",
"groups": [
"system:serviceaccounts",
"system:serviceaccounts:test",
"system:authenticated"
]
},
"sourceIPs": [
"172.18.0.3"
],
"userAgent": "Go-http-client/1.1",
"objectRef": {
"resource": "nodes",
"apiVersion": "v1"
},
"responseStatus": {
"metadata": {},
"code": 200
},
"requestReceivedTimestamp": "2023-02-06T09:51:51.790260Z",
"stageTimestamp": "2023-02-06T09:51:51.791075Z",
"annotations": {
"authorization.k8s.io/decision": "allow",
"authorization.k8s.io/reason": "RBAC: allowed by ClusterRoleBinding \"defaultadmin\" of ClusterRole \"cluster-admin\" to ServiceAccount \"default/test\""
}
}
日志中annotations.authorization.k8s.io/reason给出了允许执行的原因。我们可以根据如下三个字段制定告警规则：
serviceaccount有权限的情况下： annotations.authorization.k8s.io/reason annotations.authorization.k8s.io/decision userAgent: Go-http-client/1.1 responseStatus.code：200 无权限的情况下： userAgent: Go-http-client/1.1 responseStatus.code：403
2.4.2 总结
API（Aggregation API）SSRF漏洞.
APIService 可以将客户端的请求转发到任意的 URL 上，这就有可能会导致 Client 发送请求时，所携带的一些认证信息可能会被发送给第三方。
通过日志审计监控responseStatus.code字段来进行判断是否有出现重定向的情况，通过检测如下字段：
responseObject.code:302 responseObject.code:301
3.2 使用不合规镜像创建pod
verb : create level:RequestResponse esponseObject.kind:Pod requestObject.spec.containers.image:镜像仓库地址
3.3 pod命令执行
objectRef.subresource:exec objectRef.subresource:attach userAgent
4. 落地实践踩过的坑
解决方案为对于字段不一致的obj，选择为不做深层次解析。（或者使用hdfs等存储方式，查询时对字段进行解析
2、日志量过大，导致api-server磁盘读写io过高
持续优化audit.yaml中的日志规则，对于其中的node/status,pod/status,coordination.k8s.io/leases等不做日志记录。
当然，CDK作为开源工具，这些特征都可以做关键字替换。因此，笔者认为功夫应该用到平时，加强k8s的基线管控，比如避免出现高serviceaccount权限、通过准入策略限制使用的docker镜像，并部署容器运行时入侵检测平台。让安全能力覆盖每个环节，才能保证集群的安全稳定。
